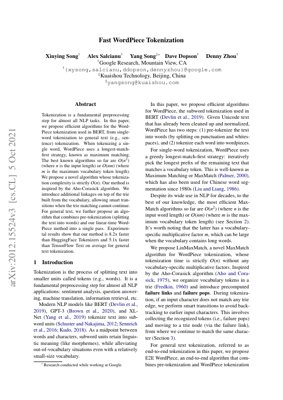

Fast WordPiece Tokenization: A Linear-Time Algorithm for BERT and Beyond

Table of Contents

1. Introduction

Tokenization is the foundational preprocessing step for nearly all Natural Language Processing (NLP) tasks, from sentiment analysis to machine translation. Modern models like BERT, GPT-3, and XLNet rely on subword tokenization, specifically algorithms like WordPiece, to break text into meaningful units while handling out-of-vocabulary words. This paper addresses a critical bottleneck: the efficiency of the WordPiece tokenization algorithm itself.

The authors identify that the standard greedy longest-match-first (MaxMatch) strategy used in WordPiece has suboptimal time complexity—$O(n^2)$ or $O(nk)$, where $n$ is input length and $k$ is max token length. They propose LinMaxMatch, a novel algorithm achieving strict $O(n)$ linear-time complexity for single-word tokenization, and an integrated End-to-End (E2E) WordPiece algorithm for general text.

2. Background & Related Work

WordPiece tokenization, as used in BERT, involves two steps: (1) pre-tokenizing text into words based on whitespace and punctuation, and (2) applying the MaxMatch algorithm to each word against a fixed vocabulary. MaxMatch, also used in Chinese word segmentation, iteratively selects the longest prefix of the remaining string that matches a vocabulary token.

Prior efficient algorithms were limited to $O(n^2)$ or $O(nk)$. The $k$ factor is problematic as vocabularies can contain long tokens (e.g., "supercalifragilisticexpialidocious"). This paper's contribution lies in eliminating this vocabulary-dependent factor entirely.

3. The LinMaxMatch Algorithm

3.1 Core Idea & Inspiration

LinMaxMatch is inspired by the Aho-Corasick string matching algorithm. The key insight is to treat the vocabulary as a set of patterns and the input word as the text. By precomputing auxiliary data structures on the vocabulary trie, the algorithm can avoid backtracking during matching, which is the source of quadratic complexity in naive MaxMatch.

3.2 Data Structures: Trie, Failure Links, and Failure Pops

The algorithm uses three core data structures built from the vocabulary during an offline preprocessing phase:

• Trie: A standard prefix tree where each node represents a character and paths from the root represent vocabulary tokens.
• Failure Link (similar to Aho-Corasick): For a node representing string $s$, its failure link points to the node representing the longest proper suffix of $s$ that is also a prefix of some vocabulary token. This allows the algorithm to "fail over" efficiently.
• Failure Pop: A novel addition. When traversing from a node via its failure link, the algorithm may "pop" one or more tokens that have been matched ending at that node. This list is precomputed and stored.

3.3 Algorithm Walkthrough

For an input word of length $n$, the algorithm processes characters left-to-right in a single pass. It maintains a current node in the trie. For each new character:

1. Try to follow the matching edge from the current node.
2. If successful, move to the child node. If this node is a vocabulary token endpoint, record it as a potential match.
3. If no matching edge exists, follow the failure link of the current node. Collect any tokens stored in the associated "failure pop" list. Then, retry matching the same input character from the new node.

This process ensures every character is processed exactly once, guaranteeing $O(n)$ time.

4. End-to-End (E2E) WordPiece Tokenization

For tokenizing full sentences or documents, the authors propose integrating the pre-tokenization step (splitting on whitespace/punctuation) with LinMaxMatch into a single, unified algorithm. This E2E WordPiece algorithm also operates in linear time relative to the total text length, avoiding the overhead of separate stages. It cleverly interleaves boundary detection with subword matching within the same trie traversal framework.

5. Experimental Results & Performance

The paper presents compelling benchmarks comparing their implementation against two widely-used libraries: HuggingFace Tokenizers and TensorFlow Text.

The results demonstrate that the theoretical $O(n)$ advantage translates into significant real-world performance gains, especially for longer texts or in latency-sensitive environments like mobile inference.

6. Key Insights & Analysis

Core Insight

The paper's fundamental breakthrough isn't just a faster tokenizer; it's the formal recognition of tokenization as a string matching problem solvable by classic automata theory. By reframing WordPiece's MaxMatch from a naive greedy search into an Aho-Corasick variant, the authors bridge a decades-old gap between theoretical computer science and applied NLP engineering. This is reminiscent of how the CycleGAN paper reframed image translation as a cycle-consistent adversarial learning problem, creating a new paradigm.

Logical Flow

The argument is logically airtight: 1) Identify the bottleneck ($O(n^2)$/$O(nk)$ complexity). 2) Draw inspiration from a proven, optimal algorithm (Aho-Corasick). 3) Adapt it to the specific constraints of MaxMatch (need to output all matched tokens, not just existence). 4) Introduce novel data structures (Failure Pops) to handle these constraints. 5) Extend the solution to the full pipeline (E2E). The flow from problem to inspiration to adaptation to generalization is exemplary applied research.

Strengths & Flaws

Strengths: The $O(n)$ guarantee is theoretically elegant and practically verified. The preprocessing cost is a one-time overhead. The impact on mobile/edge NLP could be substantial, as noted by the authors and supported by trends in on-device AI research from institutions like Google AI.

Potential Flaws/Omissions: The paper lightly touches on but doesn't deeply analyze memory overhead for the enhanced trie (failure links & pops). For massive vocabularies (e.g., multilingual models), this could be non-trivial. Furthermore, the benchmark, while impressive, is against specific implementations. A comparison against other optimized MaxMatch variants (e.g., using suffix arrays) would strengthen the claim.

Actionable Insights

For NLP practitioners: Immediately profile your tokenization latency. If it's more than 1-2% of your total inference time, especially for streaming or mobile applications, adopting an algorithm like LinMaxMatch is a high-ROI optimization. For researchers: This work opens the door. Can similar automata-based approaches optimize Byte-Pair Encoding (BPE) or SentencePiece? The core idea—replacing backtracking with precomputed state transitions—is widely applicable to other greedy segmentation algorithms in NLP.

7. Technical Details & Mathematical Formulation

The core of LinMaxMatch can be formalized. Let:

• $V$ = Vocabulary, a set of strings.
• $T$ = Trie built from $V$.
• For a trie node $u$, let $L(u)$ be the string formed by characters from the root to $u$.
• Failure Function $f(u)$: The node $v$ such that $L(v)$ is the longest proper suffix of $L(u)$ where $v$ is also a node in $T$.
• Failure Pop $P(u)$: The set of vocabulary tokens $t \in V$ where $t$ is a suffix of $L(u)$ and there exists a node $w$ on the path from the root to $f(u)$ (or $u$ itself) where $L(w) = t$. This is precomputed for all nodes.

The tokenization of input string $S[1..n]$ proceeds by maintaining a current node $u$ (initially root) and an index $i$. While $i \leq n$:

1. If there exists a child $v$ of $u$ with edge label $S[i]$, set $u = v$, $i = i+1$. If $u$ marks the end of a vocabulary token, note it.
2. Else, output all tokens in $P(u)$. Set $u = f(u)$. Do not increment $i$. If $u$ is the root and no child matches $S[i]$, then $i = i+1$ (handle unknown chars).

This loop's $O(n)$ complexity is clear, as $i$ either increases or $u$ follows failure links, which can be amortized to a constant per step.

8. Analysis Framework: A Case Study

Scenario: Optimizing tokenization for a real-time voice assistant on a smartphone. The current pipeline uses a standard WordPiece tokenizer from a popular library.

Framework Application:

1. Baseline Measurement: Profile shows tokenization consumes ~15ms per query, which is 12% of total pipeline latency (125ms). The target is <100ms.
2. Bottleneck Analysis: The queries are often long (spoken sentences). The $O(nk)$ factor is significant because the vocabulary contains technical compound words.
3. Solution Design: Replace the tokenizer with LinMaxMatch. The one-time cost of building the enhanced trie with failure links/pops is acceptable during model deployment.
4. Expected Outcome: Based on the paper's 5-8x speedup, tokenization time should drop to ~2-3ms, reducing total latency to ~112ms, a solid step towards the target. The constant-time guarantee also improves latency predictability.

This case study illustrates how the algorithm's theoretical properties directly address practical constraints in modern AI systems.

9. Application Outlook & Future Directions

The implications of efficient, linear-time tokenization extend beyond BERT:

• On-Device & Edge AI: As models like GPT-like architectures are distilled for phones, every millisecond saved in preprocessing compounds. This work is foundational for the next generation of responsive, offline-capable NLP applications.
• Streaming Tokenization: For real-time translation or live captioning, $O(n)$ complexity ensures predictable performance. Future work could explore incremental tokenization for infinite streams.
• Multilingual & Large Vocabularies: Scaling to vocabularies with 1M+ tokens across 100+ languages. Research is needed to optimize the memory footprint of the precomputed structures, perhaps using compressed tries or approximate methods.
• Integration with Model Architecture: Could tokenization be partially learned or merged with the first layer of a transformer? "Dynamic Tokenization" based on context remains an open challenge, but efficient base algorithms like this one are a prerequisite for such exploration.

10. References

1. Devlin, J., Chang, M. W., Lee, K., & Toutanova, K. (2019). BERT: Pre-training of Deep Bidirectional Transformers for Language Understanding. NAACL-HLT.
2. Aho, A. V., & Corasick, M. J. (1975). Efficient string matching: an aid to bibliographic search. Communications of the ACM.
3. Kudo, T. (2018). Subword Regularization: Improving Neural Network Translation Models with Multiple Subword Candidates. ACL.
4. Wolf, T., et al. (2020). HuggingFace's Transformers: State-of-the-art Natural Language Processing. arXiv preprint arXiv:1910.03771.
5. Google. (2020). TensorFlow Text. https://www.tensorflow.org/text
6. Brown, T. B., et al. (2020). Language Models are Few-Shot Learners. NeurIPS.
7. Zhu, J.-Y., Park, T., Isola, P., & Efros, A. A. (2017). Unpaired Image-to-Image Translation using Cycle-Consistent Adversarial Networks. ICCV. (Cited as an example of paradigm-shifting reframing).
